Road Blocker
The main role of Road Blocker ZOJE-RD3000 is to provide security for troops, prisons, road bayonet, warehouse, wharf and other key defense departments. Prevent unauthorized vehicle forced entry, with high practicability, reliability and security.
Send Inquiry
Product Description
Embedded road blocker equipment is mainly composed of road block machine, hydraulic transmission station, electric control parts, totally three parts.

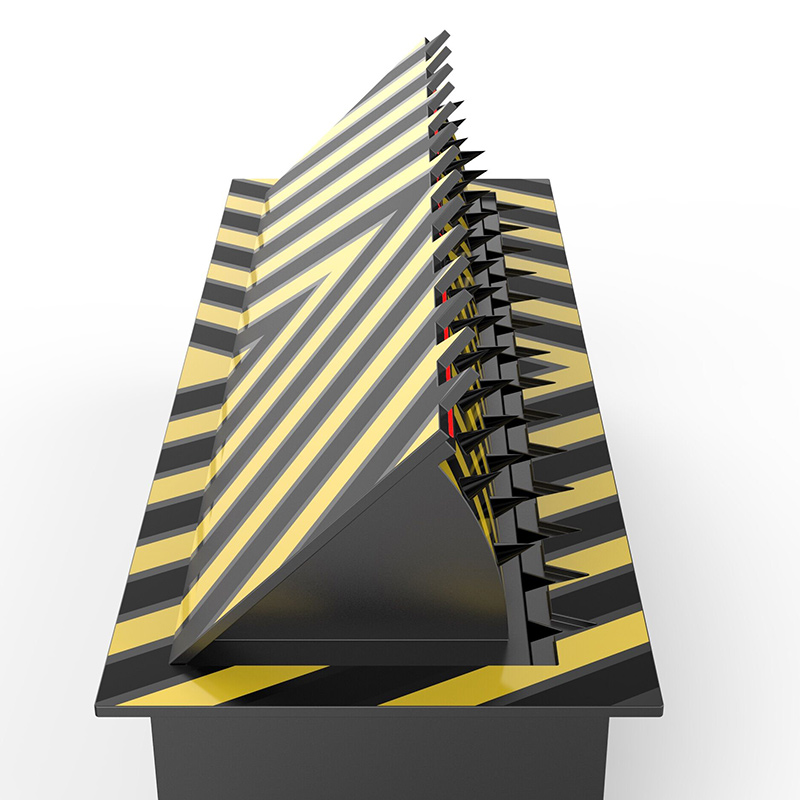

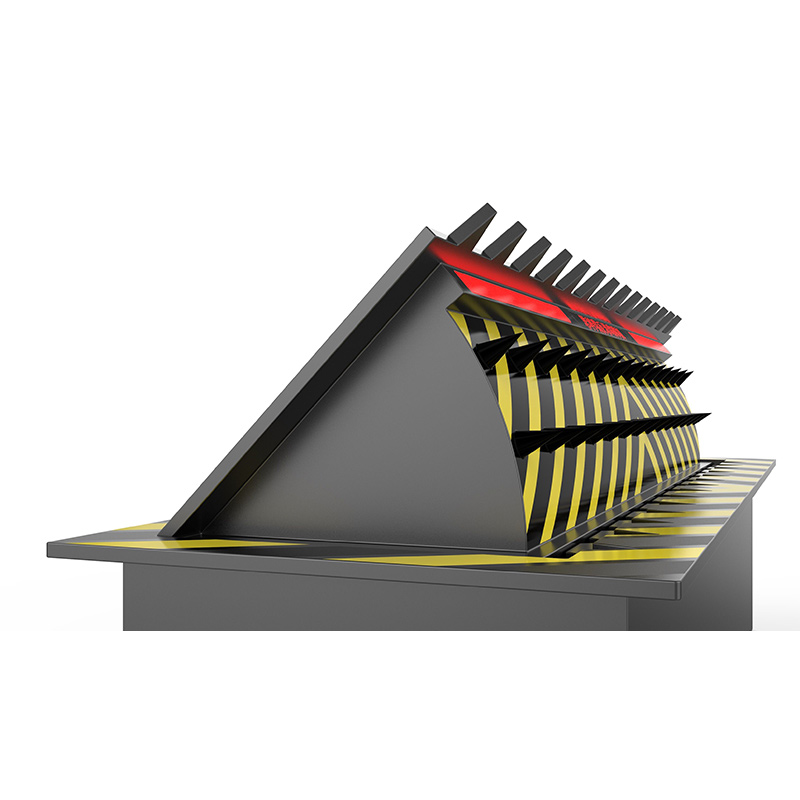

The road blocker machine is mainly composed of turn swivel or lifting body,housing base(anti-collision spike can be added according to the client`s requirement). The machine is made of steel,16mm international standard A3 carbon steel and the channel steel welded together,which has a high strength of bearing load and anti-collision. There is no electrical appliances and line setup inside the base housing. It is very safe. The device is embedded in the driveway or the specified location of the gate.The personnel on duty will control the road blocker to limit the vehicle access.
Hydraulic station composed of oil tank, the manual oil pump, a full range of hydraulic solenoid valve group, the high power motor, oil pump,oil cylinder,oil gauge, high pressure hydraulic oil pipe and so on. It is the power source of a full set of road blocker system.The station is installed at the side of road blocker and work together with the road blocker( Can adjust the up and down speed through control valve).When power failure, you can manually drop the blocker down and rise the blocker up.
Automatic electronic control system parts: PLC control board,leakage switch, no exposure to noise high life contactor and other precise time-starting device( prevent the impact of the oil cylinder in place after movement and increase the service life of it)
Automatic controller: control box, remote controller,manual button. Those are controlled by the personnel on duty.
The road blocker machine is mainly composed of turn swivel or lifting body,housing base(anti-collision spike can be added according to the client`s requirement). The machine is made of steel,16mm international standard A3 carbon steel and the channel steel welded together,which has a high strength of bearing load and anti-collision. There is no electrical appliances and line setup inside the base housing. It is very safe. The device is embedded in the driveway or the specified location of the gate.The personnel on duty will control the road blocker to limit the vehicle access.
Hydraulic station composed of oil tank, the manual oil pump, a full range of hydraulic solenoid valve group, the high power motor, oil pump,oil cylinder,oil gauge, high pressure hydraulic oil pipe and so on. It is the power source of a full set of road blocker system.The station is installed at the side of road blocker and work together with the road blocker( Can adjust the up and down speed through control valve).When power failure, you can manually drop the blocker down and rise the blocker up.
Automatic electronic control system parts: PLC control board,leakage switch, no exposure to noise high life contactor and other precise time-starting device( prevent the impact of the oil cylinder in place after movement and increase the service life of it)
Automatic controller: control box, remote controller,manual button. Those are controlled by the personnel on duty.
Technical parameters
| Standard model | ZOJE-RD3000 |
| Control system | Electric hydraulic control |
| Voltage | 380V( controller voltage:24V) |
| System power | 3.7KW/5.5KW |
| Passing pressure | 120 ton container truck |
| Rising time | 1.5~5s(preset) |
| Dropping time | 1.5~5s(preset) |
| Material | A3 steel thickness 12mm, spray rust primer |
| Weight | 1.5 ton for 3 meter |
| Control type | RFID card, remote control |
| Power off | Open or close on manual |
| Working environment | Indoor and outdoor |
| Working temperature | -30 ℃ to +70 ℃ |
| Relative humidity | ≤95% coagulation free |
| LED indicator | Optional, on top of bollard |
| IP protection level | IP 68 |
