The automatic Hydraulic Bollard is an electric-hydraulic-mechanically operated retractable bollard system.The system can be quickly and easily operated. It is suitable for both security and access control applications.The system is designed to bring desired environmental and aesthetic enhancements to perimeter security, securing perimeter access without providing a sense of social disorder and active alarm measures.
The system is designed to withstand impacts and stable operation, offering high security levels to all sites. It is ideal for university campuses, pedestrian walkways, parking lots, government buildings, sports stadiums, amusement parks, airports, shopping centers, hospitals, and apartment complexes.
Any OEM or ODM order would be warmly welcomed and highly appreciated. If you are purchasing hydraulic bollards for designated projects with unique design, please feel free to contact us as we have years of experience in customization.
Technical parameters
Standard model
|
ZOJE-HB168
|
Control system
|
Electronic hydraulic control
|
Voltage
|
AC110/220V( controller voltage:24V)
|
System power
|
350W
|
Passing pressure
|
80 ton container truck
|
Rising time
|
1.5~6S(preset)
|
Dropping time
|
1.5~6S(preset)
|
Material
|
304 stainless steel, thickness 6mm spray rust primer
|
Weight
|
150KG
|
Control Type
|
RFID card, remote control
|
Power off
|
Open or close by manual
|
Working Environment
|
Indoor and outdoor
|
Working temperature
|
-30 ℃ to +70 ℃
|
Relative humidity
|
≤95% coagulation free
|
LED Indicator
|
Optional, on top of bollard
|
IP protection level
|
IP 68
|
Dimension
|
Customized
|
Hydraulic Bollard Feature And Application

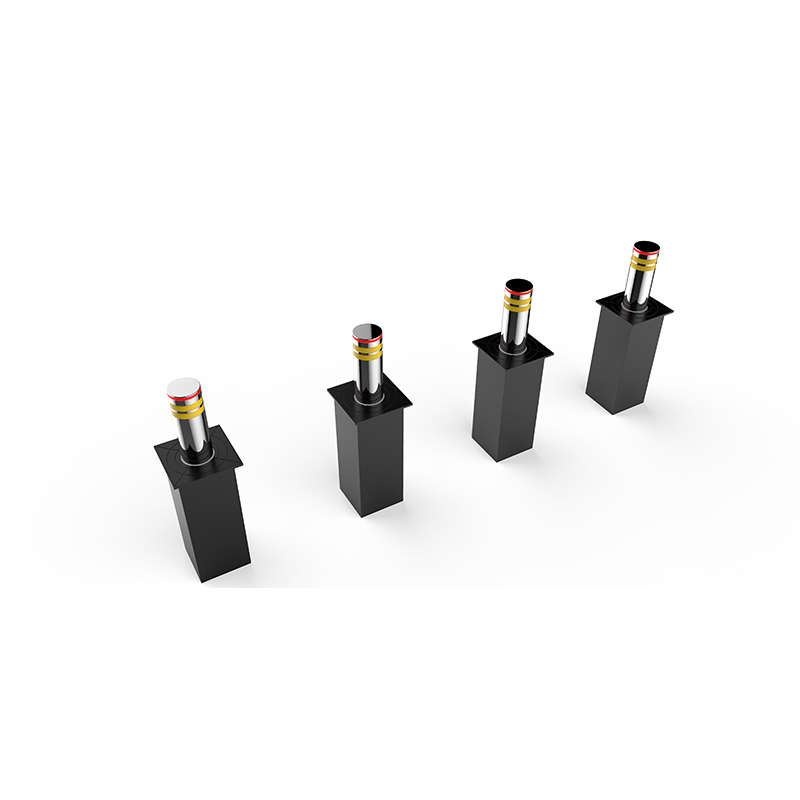

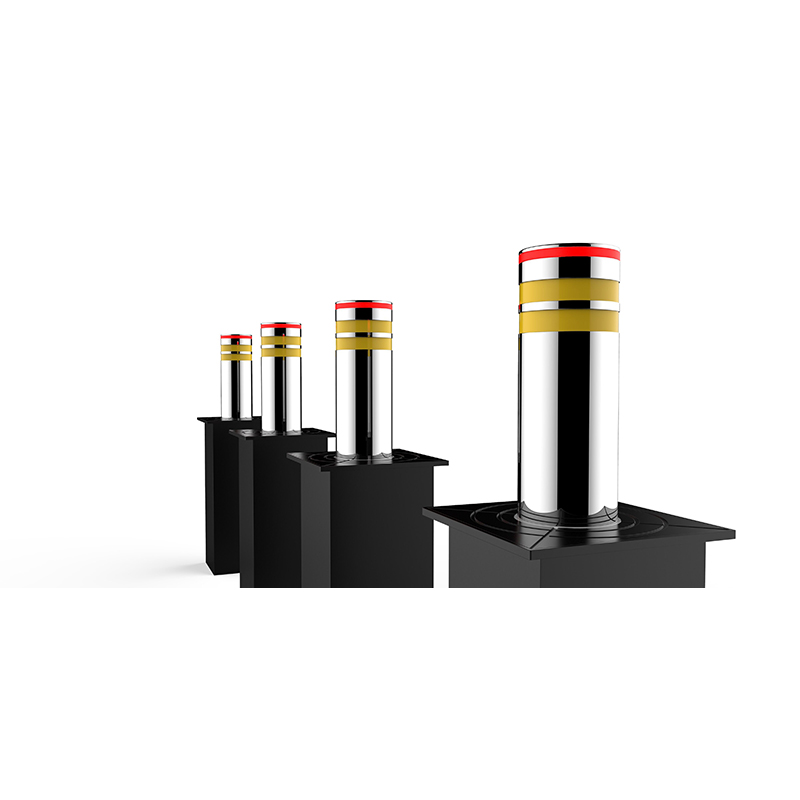

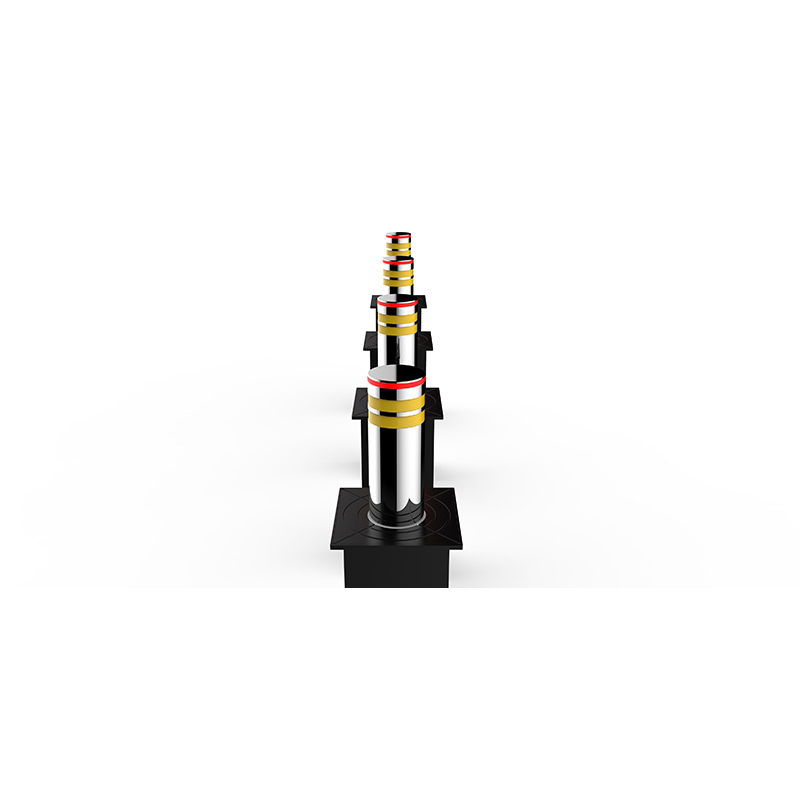

ZOJE-HB168 Hydraulic Bollard
●The automatic lift road pile adopts an integrated independent power system, which is easy to install, easy to maintain and of low failure rate.
●Collision type lifting road pile has exclusive anti-collision structure design, more than 6 mm thick wall cylinder and double resistance to pile into guide system could be used to provide a stronger ability to resist against and give very good security.
●Before each device leaves the factory, there are 24 hours of uninterrupted work test, to guarantee the most reliable quality for long-term use.
●Control mode: wireless remote control, cable button operation, power failure manual emergency reduction, Bluetooth control, remote control (limited to mainland China) and smart phone control.
●Emergency measures: backup EPS emergency power. In case of power failure, please switch off manually for landing.
●Drainage pattern: natural seepage/automatic drainage system.
