Boom Barrier
ZOJE-PB200 Electromechanical Boom Barriers Gates is a entrance and exit management equipment specially used to restrict motor vehicles on the road. It is now widely used in parking lot systems and highway toll stations to manage vehicle channels and to manage vehicle entry and exit.
Send Inquiry
Product Description

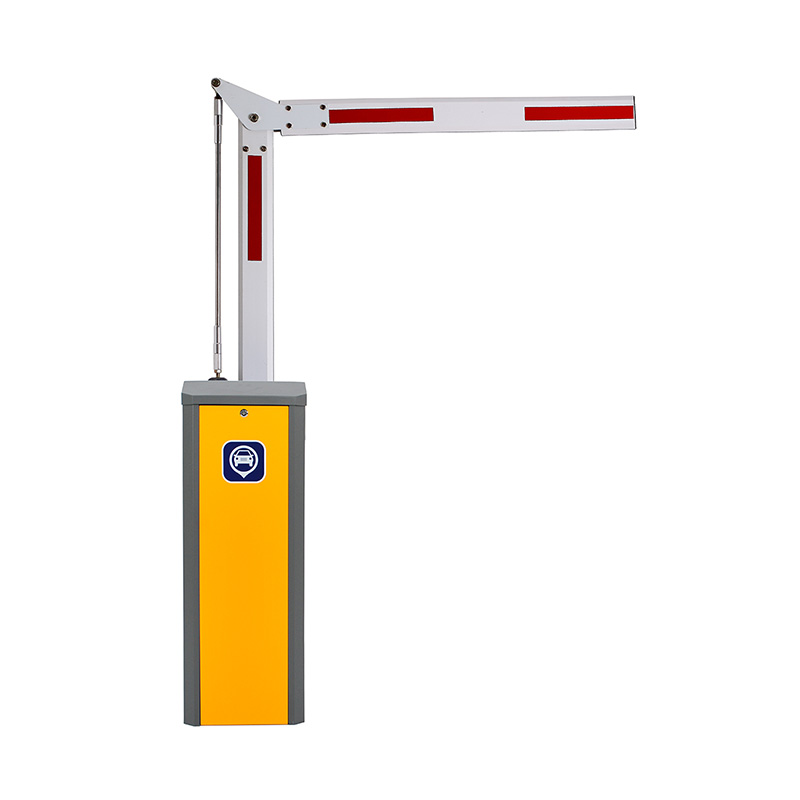

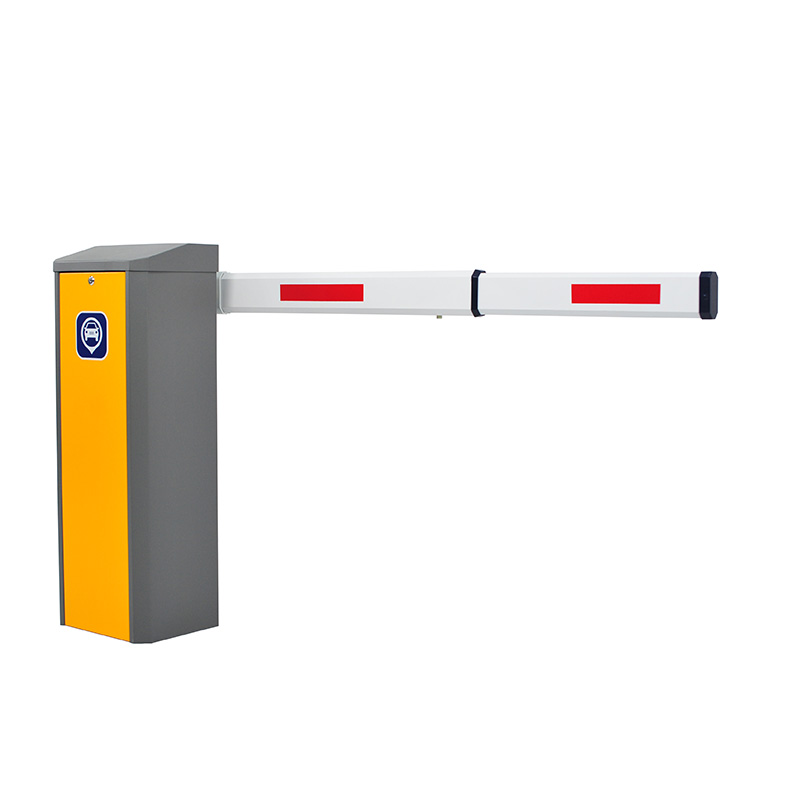

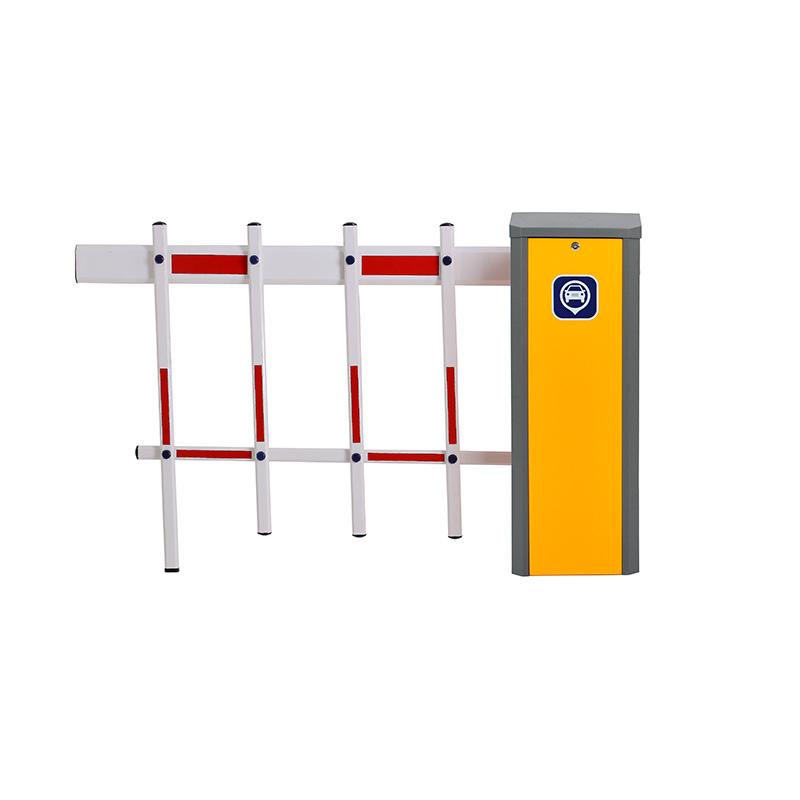

ZOJE-PB200 Electromechanical Boom Barriers Gate is divided into straight arm, fence arm, telescopic arm and fold arm(90 degrees or 180 degrees) The appropriate arm type can be selected according to different scenarios.
ZOJE-PB200 works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light.
ZOJE-PB200 works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light.
Technical parameters
1 Working temperature(motor): -30℃~+70℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:9.5A
5 Rated power:160W
6 Driving Method:DC Brushless Motor
7 Power Supply:AC110-220V,50/60Hz
8 Bi-direction main shaft :Lift or Right
9 Relative humidity:≥85%
10 Remote control distance:≤100M（in the open place）
11 IP Degree:IP54
12 Max length of arm:6M
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:9.5A
5 Rated power:160W
6 Driving Method:DC Brushless Motor
7 Power Supply:AC110-220V,50/60Hz
8 Bi-direction main shaft :Lift or Right
9 Relative humidity:≥85%
10 Remote control distance:≤100M（in the open place）
11 IP Degree:IP54
12 Max length of arm:6M
Product Feature And Application
ZOJE-PB200 Electromechanical Boom Barriers Gate
●The running speed can be adjusted from 1.5s to 8s
●Can be quickly interchanged
●Open the barrier gate by motor wheel when power off ,automatically reset after
●power on
●Curved crank arm three- link movement structure, the operation is stable
●Wireless remote control control open/close
●Auto reverse function（force adjustable）
●Infrared photocells connector is available.Loop detector connector is available.
●Well-integrated with car parking system equipment,with wire control(must be switch signal)
●Connector for traffic light(AC220V,power less than 40W)
●Offering dry contact signal for car parking system(COM,NC,NO)
●Auto-delay when closing(adjustable)
●RS485 or CAN network communication interface（no need to install module）
●Counting interface
●24V backup battery interface（ Can be charged by using solar energy)( optional)
●Arm open when power off ( add backup battery) (Optional)
●Anti-collision alarm device
●The running speed can be adjusted from 1.5s to 8s
●Can be quickly interchanged
●Open the barrier gate by motor wheel when power off ,automatically reset after
●power on
●Curved crank arm three- link movement structure, the operation is stable
●Wireless remote control control open/close
●Auto reverse function（force adjustable）
●Infrared photocells connector is available.Loop detector connector is available.
●Well-integrated with car parking system equipment,with wire control(must be switch signal)
●Connector for traffic light(AC220V,power less than 40W)
●Offering dry contact signal for car parking system(COM,NC,NO)
●Auto-delay when closing(adjustable)
●RS485 or CAN network communication interface（no need to install module）
●Counting interface
●24V backup battery interface（ Can be charged by using solar energy)( optional)
●Arm open when power off ( add backup battery) (Optional)
●Anti-collision alarm device
